Shipping Container House with Different design
Product Description
Product Paramenters
Specification of Raw Materials
FAQ
1. Q: Could you design a new and unique prefab house for me?
A: Of course! We have the most professional design team to integrate your demand to provide you with one-stop customization service.
2. Q: What do I need to provide to build a prefab house?
A: It would be better if you could provide a sketch. If not, you just need to tell us your demands, such as area, house use, etc., and we can make the corresponding design for you.
3. Q: what are the advantages of prefab house?
A: It is prefabricated in the factory, which does not take up construction time on the site; it can be modularly assembled, which is convenient for transportation and can be moved to achieve recycled use.
4. Q: What are the uses of this type of house?
A: It has multiple applications and can be used as hotels, offices, shops, residences, etc.
5. Q: How long does it take to build a prefab house?
A: It depends on the size of the house and complexity of the house. Usually, a 50 square meters' house takes 5 workers to complete in 1-3 days.
6. Q: What is the delivery time?
A: The delivery time depends on the quantity and the complexity of the house. Usually, the delivery time is 15-25 days after receiving the deposit.
7. Q: How to install?
A: We will provide you with installation instructions and videos, or send a technician to assist you if necessary. However, you are responsible for their wages, visa fees, airfare and accommodation.
8. Q: What is your MOQ?
| Technical Parameters | Description | ||
| Product name | Prefab house | ||
| Country of Origin | Hangzhou, China | ||
| Color | customized | ||
| Design | Flexible design | ||
| Materials | Steel and sandwich panel | ||
| Transportation | By sea | ||
| Brand | FoToon Housing Service | ||
| uses | residential and commercial | ||
| Frame | Welded/ Hot rolled H beam | ||
| Size | 3*6m packing container, shipping container reconstruction or customized | ||
| Interior decoration | customized | ||
| Certification | ISO,CE,SGS | ||
| Wall and Roof | EPS or glass wool panel | ||
| Window | PVC or Aluminum Alloy | ||
| Steel standard | Q235 | ||
| Wind load | <35m/s | ||
| Earthquake resistance | 7 fission resistant | ||
Specification of Raw Materials
| item | EPS | Glass Wool | TPS Board | Rock Wool |
| waterproof | ★★★★★ | ★★★ | ★★★★★ | ★★★ |
| fireproof | ★★ | ★★★★★ | ★★★★★ | ★★★★★ |
| Heat Insulation | ★★★ | ★★★★ | ★★★★ | ★★★★ |
| Sound Insulation | ★★★★ | ★★★★ | ★★★★★ | ★★★★ |
| Price Comparison | ★★ | ★★★ | ★★ | ★★★★ |
| Density Range | 10-14kg/m3 | 100-120kg/m3 | 40-200kg/m3 | 100-250kg/m3 |
| Accessories Name | Description |
| Ground Beam | 14#/16# H-beam, 12# channel steel; 100*100*3.0 /150*75*3.0 / 120*60*3.0galvanized steel tube; 120*120*3.0 / 150*150*3.0 bending parts |
| Pillar/Column | 100*100*3.0 /150*75*3.0 / 120*60*3.0galvanized steel tube; 120*120*3.0 / 150*150*3.0 bending parts |
| Floor beam | 100*100*3.0 / 150*75*3.0 / 120*60*3.0 / 60*60*2.0 galvanized steel tube; 60*60*3.0 / 120*120*3.0 / 150*150*3.0 bending parts |
| Floor Purlin | 8# channel steel; 80*80*2.0 / 50*100*2.0 / 40*80*2.0 galvanized steel tube |
| Stairs | 150*30 C-type steel |
| Walkway Board | anticorrisive woods |
| External Wall | 0.8mm/1.5mm/2.0mm Corrugated galvanized steel board; 0.46mm pre-painted galvanized steel board |
| Internal Wall | 0.46mm / 0.36mm / 0.26mm pre-painted galvanized steel board |
| Roof Panel | 0.8mm/1.5mm/2.0mm Corrugated galvanized steel board; 0.46mm pre-painted galvanized steel board |
| Edge | PVC capping seal, bamboo and woods fiber capping seal |
| Floor | Glass magnesium board, PVC composition tile, ceramic tiles |
| Window | Sliding window, casement window, hanging window, double-glazed glass window(thickness can be customized) |
| Door | Security door, plastic steel door, steel door, stainless steel door |
FAQ
1. Q: Could you design a new and unique prefab house for me?
A: Of course! We have the most professional design team to integrate your demand to provide you with one-stop customization service.
2. Q: What do I need to provide to build a prefab house?
A: It would be better if you could provide a sketch. If not, you just need to tell us your demands, such as area, house use, etc., and we can make the corresponding design for you.
3. Q: what are the advantages of prefab house?
A: It is prefabricated in the factory, which does not take up construction time on the site; it can be modularly assembled, which is convenient for transportation and can be moved to achieve recycled use.
4. Q: What are the uses of this type of house?
A: It has multiple applications and can be used as hotels, offices, shops, residences, etc.
5. Q: How long does it take to build a prefab house?
A: It depends on the size of the house and complexity of the house. Usually, a 50 square meters' house takes 5 workers to complete in 1-3 days.
6. Q: What is the delivery time?
A: The delivery time depends on the quantity and the complexity of the house. Usually, the delivery time is 15-25 days after receiving the deposit.
7. Q: How to install?
A: We will provide you with installation instructions and videos, or send a technician to assist you if necessary. However, you are responsible for their wages, visa fees, airfare and accommodation.
8. Q: What is your MOQ?
A:One set.

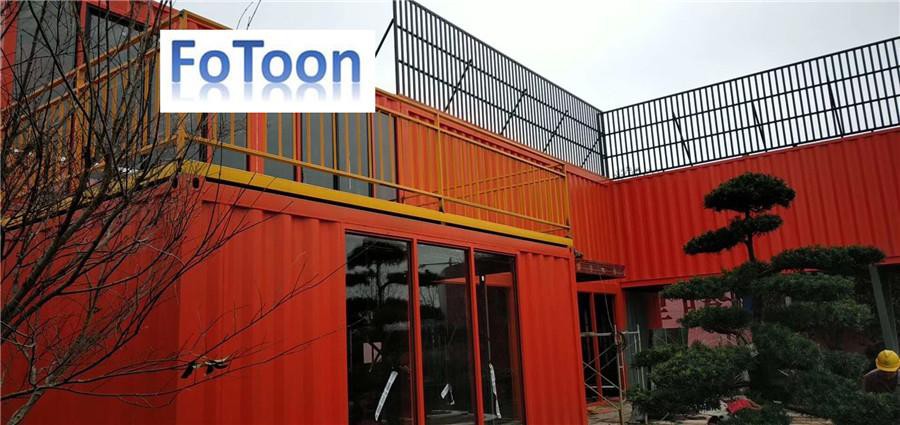

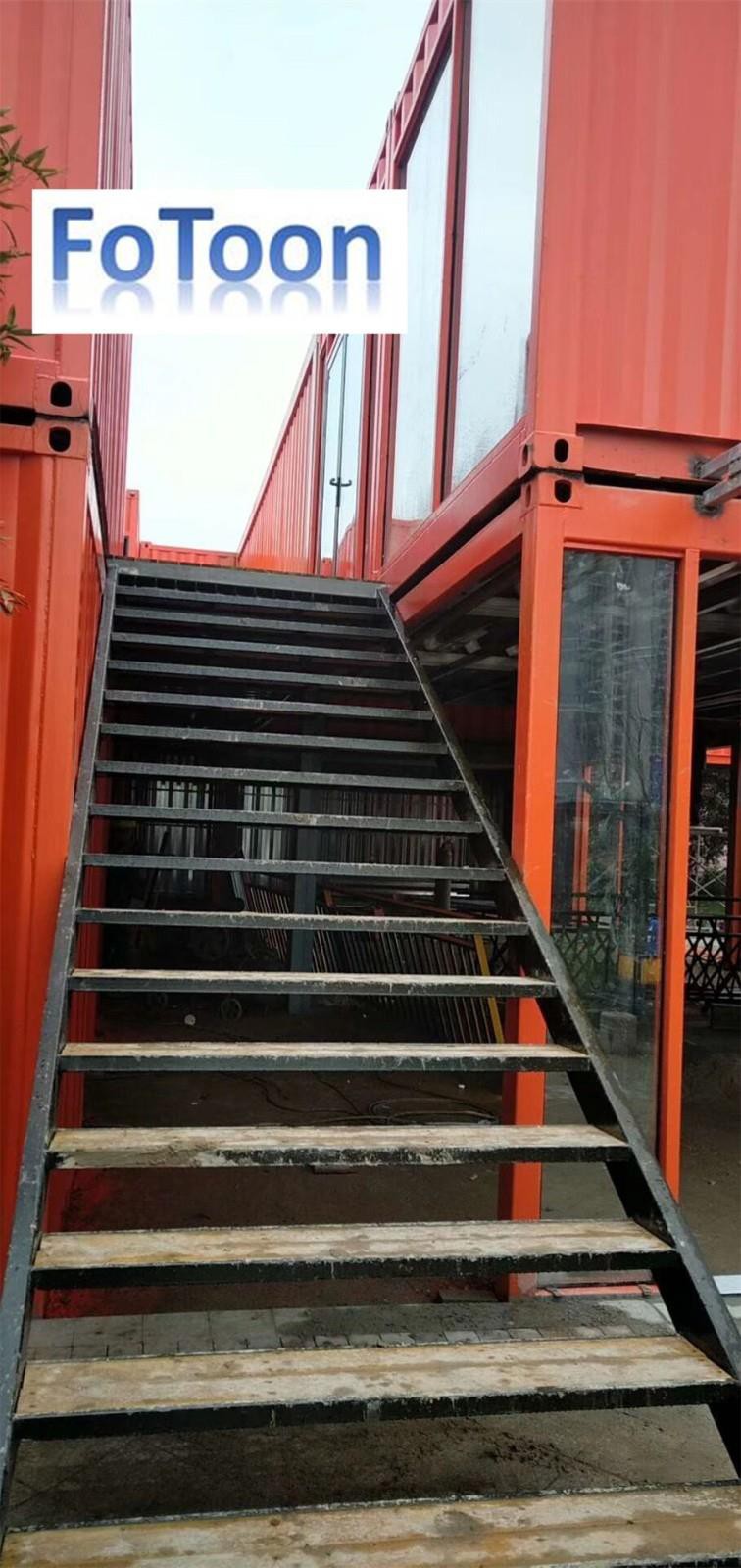

Shipping Container House project pictures:
