Prefabricated Flat Pack Container Office
Prefabricated Flat Pack Container Office building is based on the container house unit. Each unit is built and decorated in the factory, and quickly combined into various styles of buildings according to their different functions. This mechanical construction method will greatly reduce 60% of time and 70% of labor costs, and provide the best guarantee for site management, material storage and construction safety.
Our priority is the quality, which is already noticeable when entering the container. Please have a look at our container offices live.
Fully Customize Service
Prefabricated Flat Pack Container Office Basic info:
Size: 10ft, 20ft, 24ft, 30ft, 40ft HQ and customized sizes.
Usage: Prefabricated House, Home, Temporary Office, Storage room, bathroom, kitchen cooking room, dining room, toilet, guard room, etc.
Brand: FoToon Housing Service.
Materials: 3-4mm Hot Dip Galvanized Steel bending main frame, Sandwich panel insulation as walls/ roof & floor base.
H.S.Code: 9406900090.
Origin: Hangzhou, China
One Stop Service
All our prefab containers are highly customizable according to your wishes and can be extended at any time. Modular construction is our competence, we can also supply clients with interior bathroom facilities, Kitchen cabinets, furniture, etc.
Prefabricated Container Building Advantages:
1). Certified by LPCB for CN31 ISO9001.14001 ABS
2). 10 years experience of modular container
3). 15, 000 square meters factory
4). Efficient Transportation
5). Fast construction assemble period
6). Flexible Combination
7). Cost saving
8). Sustainability
9). Professional Design and RD team
10). Global standards meet (CE, CSA, AS/NZS, UL etc. )
Prefabricated Flat Pack Container Office Details:
| WALL ROOF | |||
| 1 | Wall panel | Wall panel | 60 mm thickness EPS sandwich panel with 0.5mm thickness white-grey color steel skin, 16kg/m3 density insulation |
| Interior partition wall panel | 60 mm thickness EPS sandwich panel with 0.5mm thickness white-grey color steel skin, 16kg/m3 density insulation | ||
| 2 | Roof | Interior top board | 60 mm thickness EPS sandwich panel with 0.5mm thickness white-grey color steel skin, 16kg/m3 density insulation |
| Insulation part in top | 60mm EPS foam , 16kg/m3 density insulation | ||
| Exterior top board | 0.5mm thickness color steel | ||
| Roof water treatment | 50mm Dia PVC pipe for roof water system. | ||
| STEEL FRAME | |||
| 3 | Steel frame | Column | 3.0mm Galvanized steel bending + painting finishing |
| Foundation main beam | 3.0mm steel bending main beam + painting finishing | ||
| Foundation secondary beam | 80x40mm steel rectangular tube + painting finishing | ||
| Roof framework | 3.0mm steel bending main beam + painting finishing | ||
| Roof secondary beam | 40x40mm steel section + painting finishing | ||
| Corner fitting | special for container house,ISO standard | ||
| Skirting line for decorate wall edged | PVC skirting line | ||
| FLOOR | |||

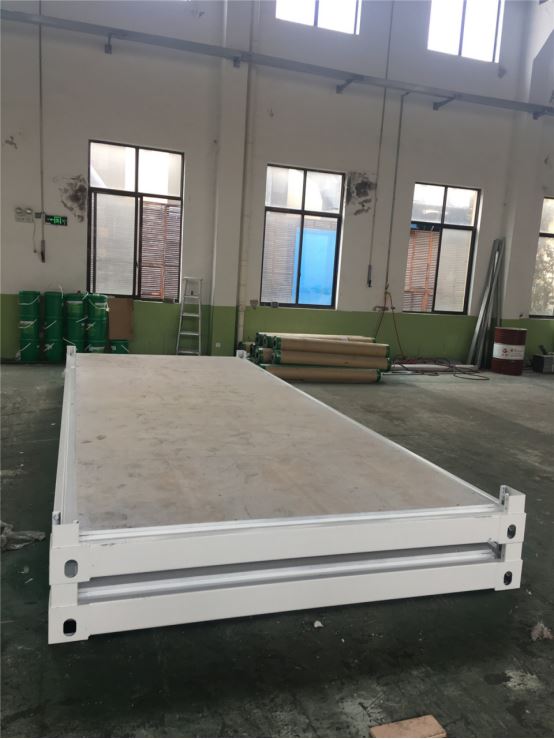

| 4 | Floor | Floor base | 18mm Fiber cement board |
| Floor finishing | 1.8mm PVC floor | ||
| 5 | Door Window | Door | 840x2040mm white color security door with stainless steel lock |
| window wrap page | 900x1200mm 600x600 white color Aluminum Alloy Sliding windows with double glazed glass 5/9/5mm fly screen. | ||
| Window wrap page | aluminum alloy | ||
| ACCESSARIES | |||
| 6 | Accessories | Accessories | bolt, screw, glass glue, connecting part, basic tools for assembling |
| Electrical material components | electric distribution board,single phase circuit breaker , sockets, switches, lights, wire under customers country standard | ||
| Facilities | Shower, towel rack; toilet, toilet paper holder; hand basin, soap holder. ( For option ). | ||
Prefabricated Flat Pack Container Office raw materials:

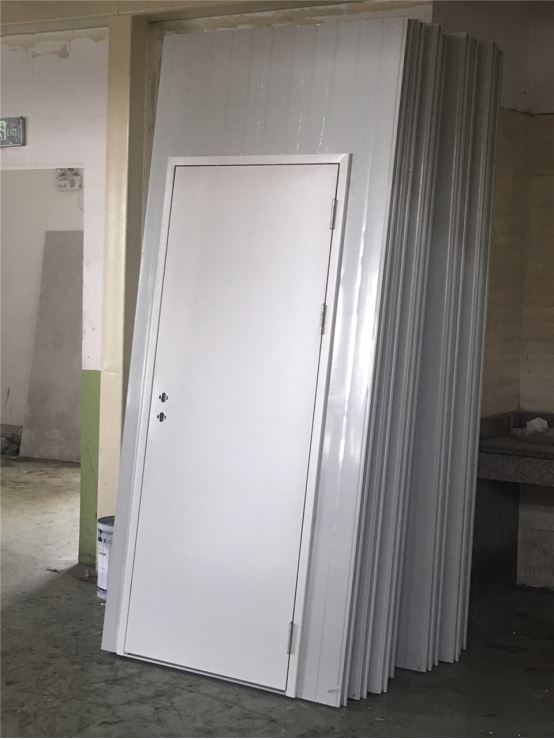

Aluminum security door

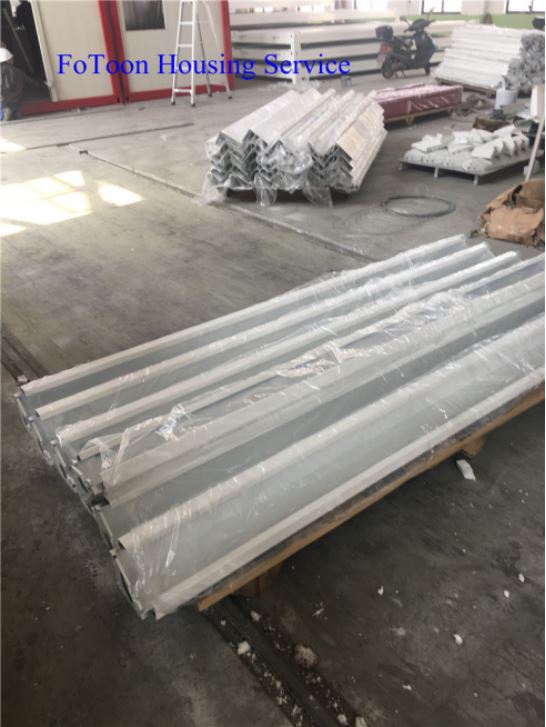

Customized shape steel columns
LG brand vinyl floor finishing

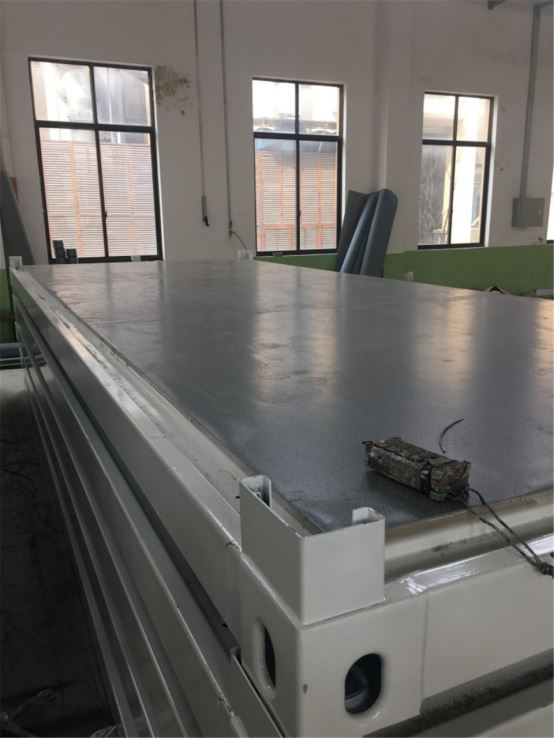

Container roof section

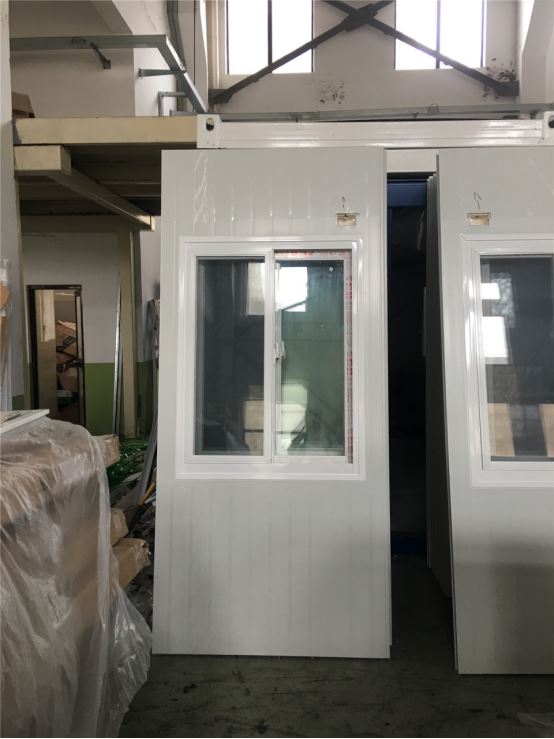

Double glazed glass window
High strength fiber cement floor board
Combined containers
Container structure
Interior Container finishing
Container School room
Container Office room

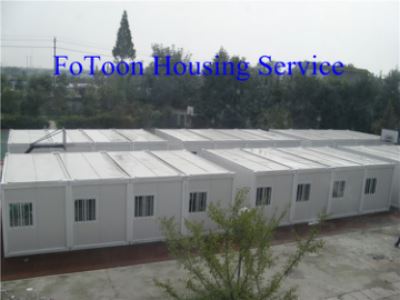

Container Office Building
The Containers could be combined together for larger space requirements, we will supply detailed assemble instruction materials for the roof/ floor connection area treatment.
Prefabricated Flat Pack Containers could be stacked 3 levels, and steel frame will take 4mm columns accordingly.
Packing & delivery for the Prefabricated Flat Pack Container Office:
Our factory has 2 types packing for Flat Packs, one is 4 standard 20ft Containers packed as 20ft SOC & directly load onto vessel, no need shipping container for loading; the other one is we pack 5 units flat pack into 1x40ft HQ shipping container, the flat packs could be equipped with bathroom / kitchen or other facilities which clients request.
Project onsite preparation
- Pave the project site ground in same level and strong enough to support the containers. ( FoToon Housing Service supplied 20ft modular containers is about 2 tons weight per unit.)
- Lead public electric system and plumbing system to project site.
- Mobile crane is necessary, some basic assemble tools could be supplied from FoToon Housing Service.
- Experienced electrician and plumber are necessary.
- FoToon Housing Service could arrange engineer or labors come to site guide or help clients assembling. Clients will in charge of relative fee.
FoToon Housing Service supply Customize Service, pls send us your detailed design/ material requirements/ quantity for exact calculations !
